Profile ​

A Profile represents your complete layout setup. It contains everything needed to control and automate your model train layout: the track plan, vehicles, automation elements, and the connection settings for your command station.

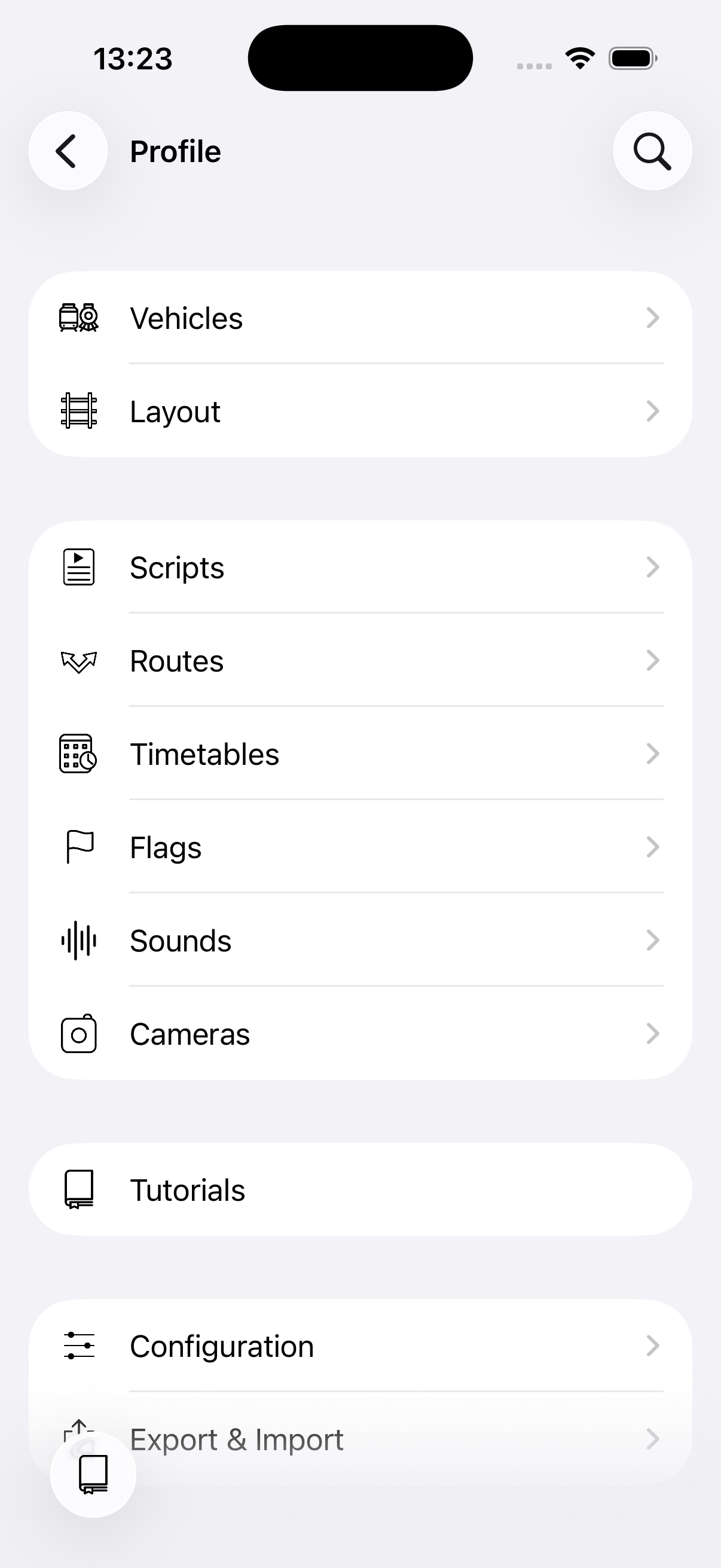

An example profile

What's inside a profile ​

A profile is organized into the following sections:

Layout & Vehicles ​

  • Layout — Your track plan with all accessories (switches, signals, etc.) and their states.
  • Vehicles — Your locomotives with their DCC addresses, functions, speed profiles, and consisting setup.

Automation ​

  • Scripts — Sequential programs that control vehicles, accessories, and more. Scripts can be organized in folders for a clean overview.
  • Routes — Predefined accessory combinations that set multiple switches and signals at once.
  • Timetables — Schedules that run your scripts based on time-of-day.
  • Flags — On/off toggles used for conditional logic in scripts (e.g. enable/disable sound during late-night sessions).
  • Variables — Numeric values (0–255) for counting, tracking state, or coordinating between scripts.
  • Sounds — Audio clips that can be played by your automation scripts, either from the built-in library or your own audio files.
  • Cameras — Video feeds from local or remote cameras, usable as feedback sensors with AI-based vehicle detection.

Configuration ​

The configuration section defines how Model Train Script connects to your command station.

Command station — Select which system to use:

  • Demo — A built-in simulator that requires no hardware. Great for exploring the app or building scripts offline.
  • Z21 — Connects to a Roco/Fleischmann Z21 command station over your local network (UDP).
  • ECoS — Connects to an ESU ECoS command station over your local network (TCP).

Connection settings — Set the IP address and port of your command station. The defaults work for most setups.

  • Discover on network — Finds command stations on your local network and fills in the address with a tap.
  • Test connection — Checks whether the configured command station is reachable.

The first time you use either, iOS asks for Local Network permission — tap Allow.

Feedback modules — Enable the feedback buses available on your system:

  • R-Bus — For Z21 feedback modules.
  • LocoNet — For LocoNet-compatible feedback devices.
  • CAN — For CAN-bus feedback modules.

Advanced options — Additional settings for specific use cases, such as automatic accessory deactivation timers, stopping locomotives when a script ends, and manual intervention support during automation.

Managing profiles ​

You can create as many profiles as you like — for example, one for each layout you operate. All your profiles are shared across your Apple devices via iCloud.

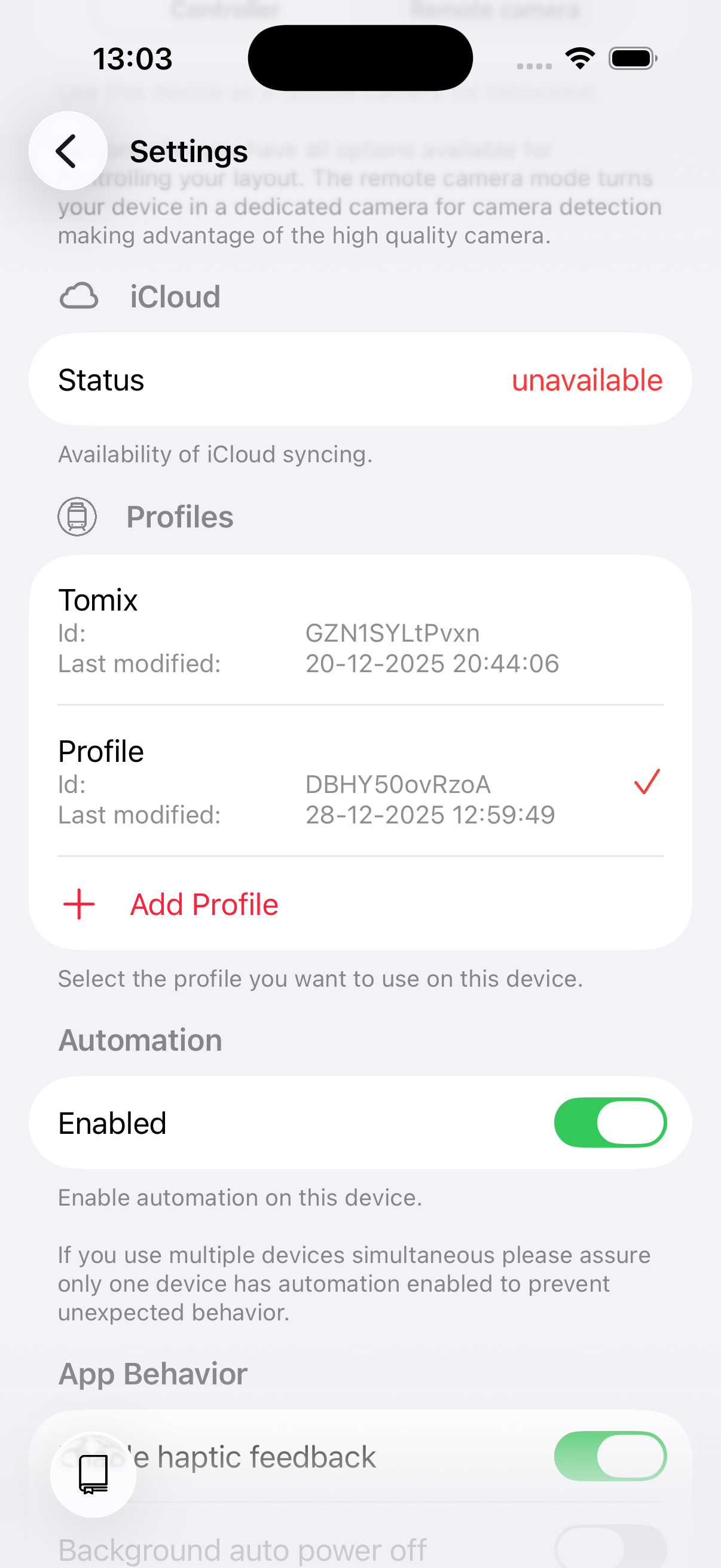

To manage profiles, tap the MTS button in the top-left, then tap your current profile name and choose Switch profile. From there you can select a different profile, create a new one, or delete profiles you no longer need.

Sharing profiles ​

Profiles can be exported and shared with others. This lets you give friends or club members access to your layout configuration, including all vehicles, track plan, and automation scripts.
